HANDLING
Roof Truss Wagon
Move finished trusses, safely and in bulk.

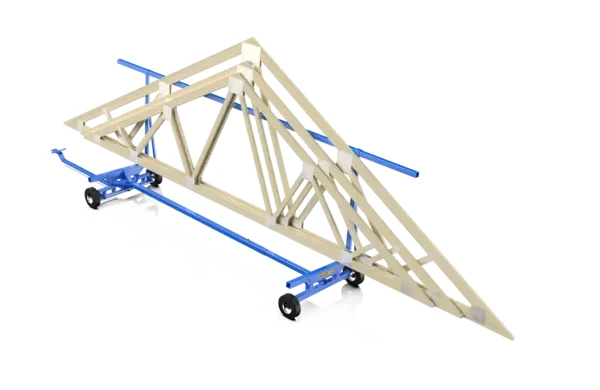

The Roof Truss Wagon is a heavy-duty trolley for transporting finished roof trusses. Trusses are stacked at a slight angle for stability, and a hitch connects the wagon to a forklift for moving whole batches at once. Its length adjusts in 500 mm steps to match the trusses you build, a practical handling accessory for any truss producer working in wood.
A heavy-duty forklift-towed trolley that stacks finished trusses at a stable angle, with length adjustable in 500 mm steps.
- Move batches, not single trusses. Stack multiple trusses at a stable angle and tow them with a forklift.
- Adjusts to your trusses. Trolley length adjusts in 500 mm steps to suit different truss lengths.
- Built for the load. Heavy-duty wheels and a 2000 kg capacity.
- Choose the fixed side. Available with the fixed side on the right or left to suit your flow.
THE NUMBERS
Technical specifications
| Capacity | |
|---|---|
| Stacking length | 5300–8550 mm |
| Stacking width | 1500 mm |
| Max load | 2000 kg |
| Load angle | 3° |
| Dimensions | |
|---|---|
| Fixed side | Right or left |
